Product Profile

Trigger Time Relay

Time relay is an automatic control unit, that can be combined with various other electrical equipment to achieve automatic control of the operating circuit. After a preset time expires, the contact output will be closed or opened, which will enable the terminal electrical equipment to automatically run or stop.

This series of time relay has the advantages of wide operating voltage range, clear workinginstructions, small volume, uniform size, easy installation, etc.

Application

Industrial machinery

lllumination

Manufacturing

HVAC system

Food and agriculture

Technical Data

Trigger Time Relay	EKR8-5 Series

Technical Data	EKR8-5150	EKR8-5151
Output Characteristics	Single-period SPDT Output
Rated Current	5A/16A
Working Voltage	Single Voltage: AC12V, AC24V, AC110V, AC220V, DC12V, DC24V Wide Voltage: AC/DC12-240V
Time Range	1S,3S,6S,10S,30S,60S,3M,6M,10M,30M,60M,3H,6H,10H,30H Customized according to clients' requirements
Functions
Dimensions: in(mm)	Wiring Diagrams

Trigger Time Relay	EKR8-5 Series

Technical Data	EKR8-5160	EKR8-5161

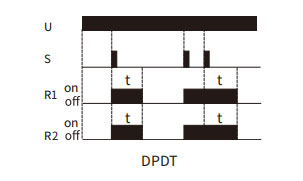

Output Characteristics	Single-period DPDT Output
Rated Current	5A/16A
Working Voltage	Single Voltage: AC12V, AC24V, AC110V, AC220V, DC12V, DC24V Wide Voltage: AC/DC12-240V
Time Range	1S,3S,6S,10S,30S,60S,3M,6M,10M,30M,60M,3H,6H,10H,30H Customized according to clients' requirements
Functions
Dimensions: in(mm)	Wiring Diagrams

Trigger Time Relay	EKR8-5 Series

Technical Data	EKR8-5250	EKR8-5251
Output Characteristics	Multi-period SPDT Output
Rated Current	5A/16A
Working Voltage	Single Voltage: AC12V, AC24V, AC110V, AC220V, DC12V, DC24V Wide Voltage: AC/DC12-240V
Time Range	0.1S~10D
Functions
Dimensions: in(mm)	Wiring Diagrams

Trigger Time Relay	EKR8-5 Series

Technical Data	EKR8-5260	EKR8-5261

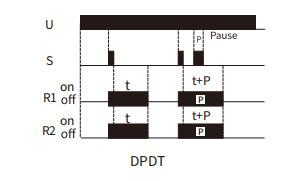

Output Characteristics	Multi-period DPDT Output
Rated Current	5A/16A
Working Voltage	Single Voltage: AC12V, AC24V, AC110V, AC220V, DC12V, DC24V Wide Voltage: AC/DC12-240V
Time Range	0.1S~10D
Functions
Dimensions: in(mm)	Wiring Diagrams

Trigger Time Relay	EKR8-5 Series

Technical Data	EKR8-5170	EKR8-5171
Output Characteristics	Single-period SPDT Output
Rated Current	5A/16A
Working Voltage	Single Voltage: AC12V, AC24V, AC110V, AC220V, DC12V, DC24V Wide Voltage: AC/DC12-240V
Time Range	1S,3S,6S,10S,30S,60S,3M,6M,10M,30M,60M,3H,6H,10H,30H Customized according to clients' requirements
Functions
Dimensions: in(mm)	Wiring Diagrams

Trigger Time Relay	EKR8-5 Series

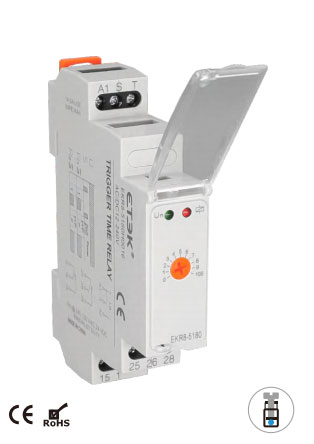

Technical Data	EKR8-5180	EKR8-5181
Output Characteristics	Single-period DPDT Output
Rated Current	5A/16A
Working Voltage	Single Voltage: AC12V, AC24V, AC110V, AC220V, DC12V, DC24V Wide Voltage: AC/DC12-240V
Time Range	1S,3S,6S,10S,30S,60S,3M,6M,10M,30M,60M,3H,6H,10H,30H Customized according to clients' requirements
Functions
Dimensions: in(mm)	Wiring Diagrams

Trigger Time Relay	EKR8-5 Series

Technical Data	EKR8-5270	EKR8-5271
Output Characteristics	Multi-period SPDT Output
Rated Current	5A/16A
Working Voltage	Single Voltage: AC12V, AC24V, AC110V, AC220V, DC12V, DC24V Wide Voltage: AC/DC12-240V
Time Range	0.1S~10D
Functions
Dimensions: in(mm)	Wiring Diagrams

Trigger Time Relay	EKR8-5 Series

Technical Data	EKR8-5280	EKR8-5281
Output Characteristics	Multi-period DPDT Output
Rated Current	5A/16A
Working Voltage	Single Voltage: AC12V, AC24V, AC110V, AC220V, DC12V, DC24V Wide Voltage: AC/DC12-240V
Time Range	0.1S~10D
Functions
Dimensions: in(mm)	Wiring Diagrams

Trigger Time Relay	EKR8-5 Series
Trigger Time Relay
Technical Data	EKR8-5290
Output Characteristics	Multi-period SPDT Output
Rated Current	5A/16A
Working Voltage	Single Voltage: AC12V, AC24V, AC110V, AC220V, DC12V, DC24V Wide Voltage: AC/DC12-240V
Time Range	0.1S~10D
Functions
Dimensions: in(mm)	Wiring Diagrams
