EKR5 is a remote control module that supports switching and RS485 control methods. This module works with RCCB (other products like MCB and RCBO are in development).
At the same time, the module supports an automatic reclosing function (3 times). When the relevant protection device in the line trips at an inopportune time (manual opening, short circuit trip, leakage trip, overload trip, etc.), it will automatically restart to improve the circuit reliability of power supply.
Basics Model |
||||
| Model | EKR5-AC-C | EKR5-DC-C | EKR5-AC-S | EKR5-DC-S |
| Control mode | Switching input control | RS485 control (MODBUS-RTU) | ||
| Power terminals | A1-A2 | |||
| Rated supply voltage | AC230V±10% | DC24V±10% | AC230V±10% | DC24V±10% |
| Power consumption | AC max.1VA(standby) max.20VA(operation) |
DC max.1VA(standby) max.20VA(operation) |
AC max.1VA(standby) max.20VA(operation) |
DC max.1VA(standby) max.20VA(operation) |
| Frequency Range | 50Hz-60Hz | |||
| Supply indication | Red and green LEDs | |||
| Action time | ≤ 1s | |||
| Electrical life | 4000 Cycles | |||
| Mechanical life | 10000 Cycles | |||
| Operating ambient temperature | -20℃ to+55℃ | |||
| Storage temperature | -35℃ to+75℃ | |||
| Installation method | Mounting on 35mm DIN rail | |||
| Protection degree | IP20 | |||
| Overvoltage cathegory | III | |||
| Pollution degree | 2 | |||
| Max. terminal size for cable | 2.5mm² | |||
| Dimensions | 84×18×78mm | |||
| Matching products | EKL6-100, EKL6-100B, EKL6-63EV | |||
Built-in automatic recloser |
||||

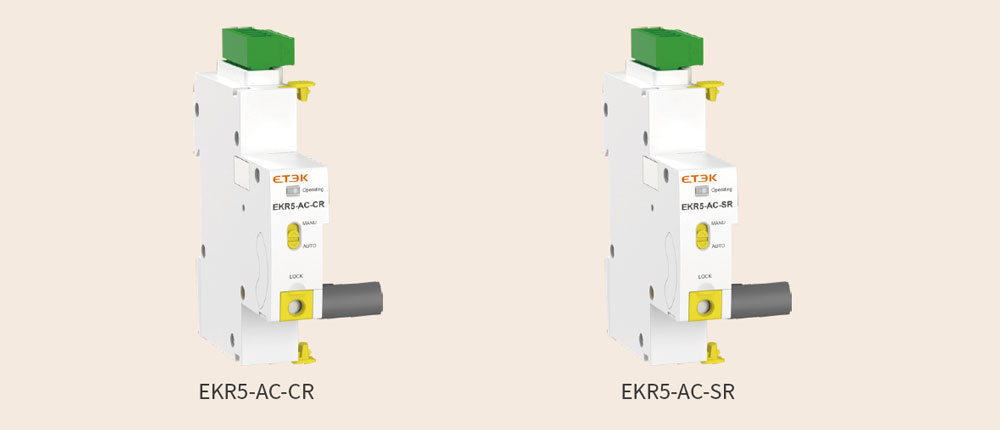

| Model | EKR5-AC-CR | EKR5-DC-CR | EKR5-AC-SR | EKR5-DC-SR |
| Control mode | Switching input control + automatic reclosing |
RS485 control (MODBUS-RTU) + automatic reclosing |
||
| Power terminals | A1-A2 | |||
| Rated supply voltage | AC230V±10% | DC24V±10% | AC230V±10% | DC24V±10% |
| Power consumption | AC max.1VA(standby) max.20VA(operation) |
DC max.1VA(standby) max.20VA(operation) |
AC max.1VA(standby) max.20VA(operation) |
DC max.1VA(standby) max.20VA(operation) |
| Frequency Range | 50Hz-60Hz | |||
| Supply indication | Red and green LEDs | |||
| Action time | ≤ 1s | |||
| Auto reclosing times | 3 | |||
| Auto reclosing interval time | 10S - 60S - 300S | |||
| Reset the closing times | No trip or manual reset within 15 minutes after the successful closing | |||
| Electrical life | 4000 Cycles | |||
| Mechanical life | 10000 Cycles | |||
| Operating ambient temperature | -20℃ to+55℃ | |||
| Storage temperature | -35℃ to+75℃ | |||
| Installation method | Mounting on 35mm DIN rail | |||
| Protection degree | IP20 | |||
| Overvoltage cathegory | III | |||
| Pollution degree | 2 | |||
| Max. terminal size for cable | 2.5mm² | |||
| Dimensions | 84×18×78mm | |||
| Matching products | EKL6-100, EKL6-100B, EKL6-63EV | |||
 |
 |
 |
|
| RCCB model | EKL6-100 | EKL6-100B | EKL6-63EV |
| Standard | IEC/EN61008-1 | IEC61008-1, IEC62423 | IEC61008-1, IEC62955 |
| Type of trip | Type of trip Electro-magnetic | ||
| Type of protection (electric leakage) | AC, A, A-G / A-SI, A-S | B | A+DC 6mA |
| No.of poles | 2P(1P+N), 4P(3P+N) , N Pole on left | ||
| Rated voltage (Ue) | 1P+N: 230/240V~, 3P+N: 400/415V~ | ||
| Rated currents (In) | 16,25,32,40,63,80,100A | 16,25,32,40,63A | |
| Rated sensitivity currents (IΔn) | 10,30,100,300mA (10mA only for In=16-25A) |
30,100,300mA | 30mA DC trip threshold(IΔdc)=6mA |
| Rated breaking capacity | 6,000A, 10,000A | 10,000A | 10,000A |
| Electrical life | 2,000 Cycles | ||
| Mechanical life | 4,000 Cycles | ||
| Ambient temperature | -25℃ to +40℃ | -25℃ to +55℃ | |
| Ground fault indicator | Yes | ||
| Protection degree | IP20 | ||
| Terminal connection type | Cable/Pin-type busbar/Fork-type busbar | ||
| Max.terminal size for cable | 35mm² | ||
| Max.tightening torque | 2.5N.m | ||
| Installation | Mounting on 35mm DIN rail | ||
| Connection | From top and bottom | ||
