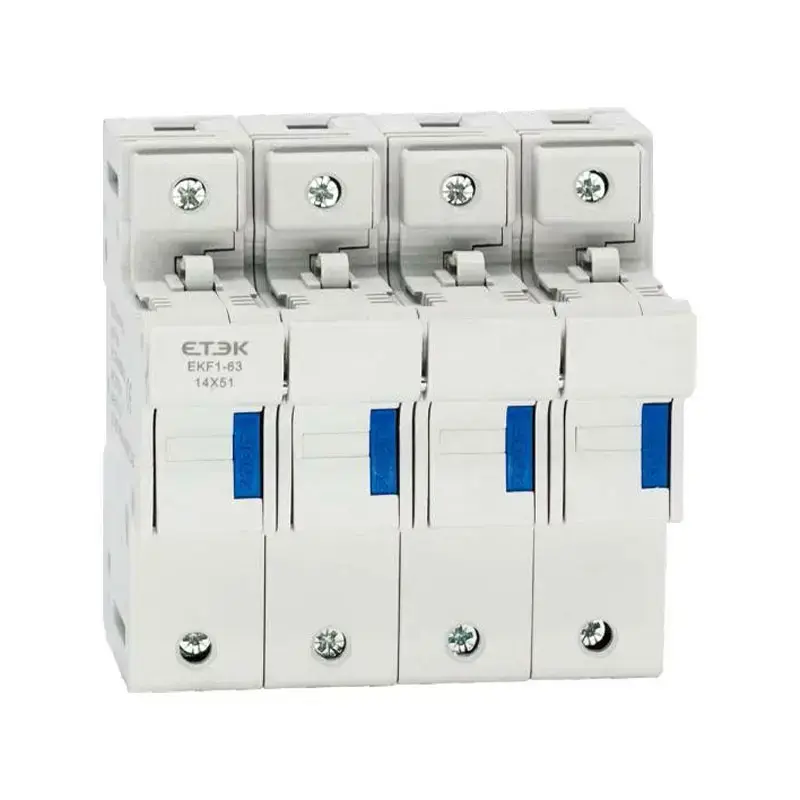

EKF1-63 Fuse Base
Inquire
| Material | Porcelain,Copper |
| Rated Voltage Ui | AC 500V,600V |
| Rated current | In 1-125A |
| Dimensions | 10x38,14x51,22x58 |
| Character | gG,aM,oR |
| Breaking capacity | 100kA,120kA |
| Current Rating | Size & Mode No. | ||||
 |
 |
 |
 |
||
| 10x38mm | 14x51mm | 22x58mm | 10x38mm(DC) | ||
| 1A | EKFL1001 | EKFL1001DC | |||
| 2A | EKFL1002 | EKFL1002DC | |||
| 4A | EKFL1004 | EKFL1004DC | |||
| 6A | EKFL1006 | EKFL1406 | EKFL1006DC | ||
| 8A | EKFL1008 | EKFL1408 | EKFL1008DC | ||
| 10A | EKFL1010 | EKFL1410 | EKFL1010DC | ||
| 12A | EKFL1012 | EKFL1412 | EKFL1012DC | ||
| 16A | EKFL1016 | EKFL1416 | EKFL1016DC | ||
| 20A | EKFL1020 | EKFL1420 | EKFL1020DC | ||
| 25A | EKFL1025 | EKFL1425 | EKFL2225 | EKFL1025DC | |
| 32A | EKFL1032 | EKFL1432 | EKFL2232 | ||
| 40A | EKFL1440 | EKFL2240 | |||
| 50A | EKFL1450 | EKFL2250 | |||
| 63A | EKFL1463 | EKFL2263 | |||
| 80A | EKFL2280 | ||||
| 100A | EKFL22100 | ||||
| 125A | EKFL22125 | ||||
| Breaking capacity | gG type AC 500V | 120kA | 120kA | 120kA | |
| aM type AC 500V | 100kA | 100kA | 100kA | ||
| oR type AC 600V | 100kA | 100kA | 100kA | ||
| Gpv type DC 1000V | 40kA | ||||
| Voltage Rating | AC 690V | AC 690 | AC 690 | DC 1000V | |
| Weight(g) | 8.4 | 20.5 | 58 | 10.3 | |
