Product Profile

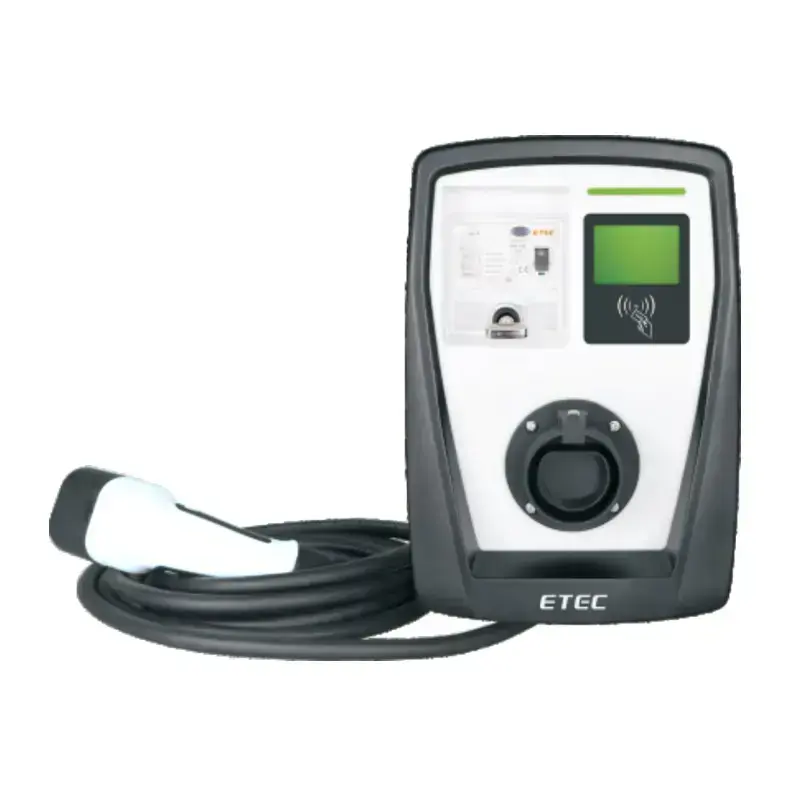

EKEC6 OCPP1.6J protocal EV Charing Station,internal is a EVSE EV charging PCB board, communication with Wifi, Ethernet or 4G

Advantages:

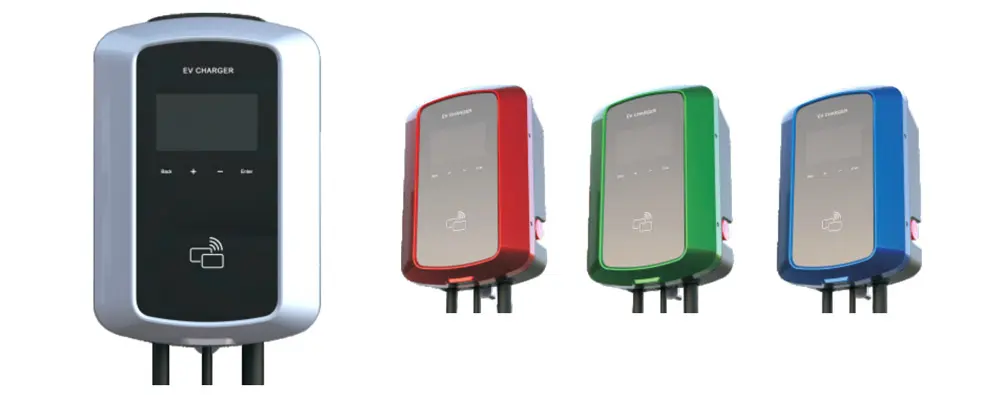

1)Nice appearance design support 7kW and 22KW same housing and can be customized with different shell colors

2)With overload protection, over voltage protection, under voltage protection, short, circuit protection, over temperature protection, emergency stop and other functions

3)Inside controller board can connected to operator service OCPP1.6J protocal backend (OCPP 2.0.1 protocal under development)

4)Can working with a DLB current monitoring device for a DLB function,the device can using CT

5)Can add a RFID module and cards,using card start/stop charging,card number can customized,also can add new by customer themself (No billing card)

6)4.3inch big LCD screen

7)Intergrated kWH Meter on the charging PCB board

Product Introduction

Technical Data

EV Charging Modes	Mode 3 charging
Rated Voltage	AC 240V ±10%,AC 420V ±10%
Rated Current	Max 16A,Max 32A
Rated Frequency	50Hz
Over Voltage Category (OVC)	OVC III
Insulation Resistance	R > 1 MΩ
AC Withstand Voltage	1430V
Impulse Dielectric Withstand Voltage (1,2 μs/50 μs)(Uimp)	4kV
Protection Against Electric Shock	Class I
Electrical Life(Contactcor)	100,000
Electrical Life(Interface)	100,000
Standby Power Consumption	<8W
Type of EV connection	Case C(Cable Version)
Universal Interface	T1:SAE J1772,T2:IEC/EN 62196-2,GB/T:20234.2-2015
Pollution Degree	PD 3
IP Protection Class	IP64
Altitude During Operation (m)	<2000m
Altitude Of Test Laboratory	<50m
Work Humidity	3%~95%
Operation Temperature	-25℃-40℃
Colling	Natural Air Cooling
Mounting Method	Mounted on walls, poles or equivalent positions
Normal Environmental Conditions	Indoor use; Outdoor use
Product Dimension(mm)	357245123
Installation Dimension(mm)	180*280
The AC charger require external MCB for overload protection and short-circuit protection to be installed in upstream distribution box

Dimensions

EKEC6 Overall Installation Drawing

Product selection form

		●: Defult Green: Simple Choice Blue: Multiple Choice	Selection Code
Model			EKEC6
Net Mode	Ocpp1.6J Protocal	Suppport Ethernet/Wifi/4G/3G/2G Communication using EKEPCB3 Controller	●
Net Mode	Remark	SIM card support band and area: LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 GSM: B2/B3/B5/B8 Area: EMEA/APAC
Case C	Cable type(Case C) Defaut value is 5M,other length can customized		●
Socket & Plug Standard	American standard Type 1(T1):SAE J1772		T1
	Europe Standard Type 2(T2)T2:IEC/EN 62196-2		T2
	China Standard :GB/T20234.2-2015		GBT
Power	3.6KW, AC230V±10% 50Hz, 16A, 1P+N+PE		3
	7.3KW, AC230V±10% 50Hz, 32A, 1P+N+PE		7
	11KW, AC400V±10% 50Hz, 16A, 3P+N+PE		11
	22KW, AC400V±10% 50Hz, 32A, 3P+N+PE		22
Protection	Configuration Device		●
Overtemperature Protection		Chip Overtemperature Protection	●
Residual Current protection	RCMU	IEC62955 standard AC30mA+DC6mA Residual current protection (Should at least installation a Type A RCD in front of Charger)	●
RFID	RFID module with card	Support swape RFID card stop and start charging	1
DLB	Current Transformer	CT Connected in Main circuit only for single phase	3
DLB	kWH meter(out Station)	kWH meter Connected in Main circuit both for single phase or three phase, other brand meter using pls checking the Charger usage manual	4
LCD dispaly	COG 4 Inch display screen		5
Emergency Stop	Emergency stop switch		●
Box Color		Silver color box	S
		Silver+red color box	R
		Silver+green color box	G
		Silver+blue color box	B

Note: Model Selection Example: EKEC6-T2-22-15-S

ETEC EKEC6 OCPP protocol EV Charger

EKEC5 OCPP1.6J protocol type EV charger can both for home and commercial Charging, wall/post mounting, support single phase 3.6kW 7.3kW, three phase 11KW/22KW charging, and DLB, LCD dispaly, RFID functions optionls.
